Product parameter

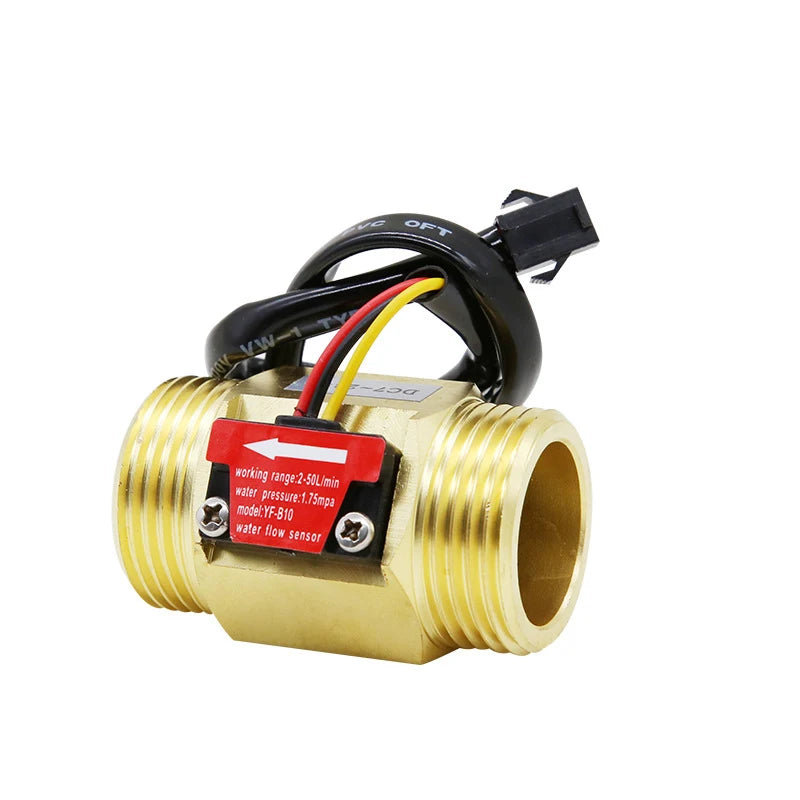

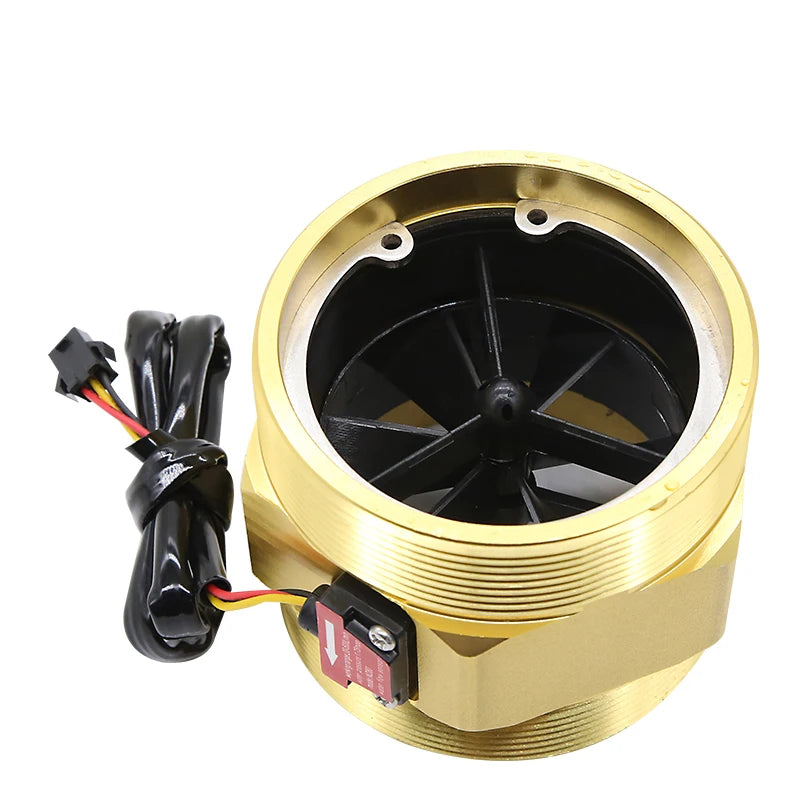

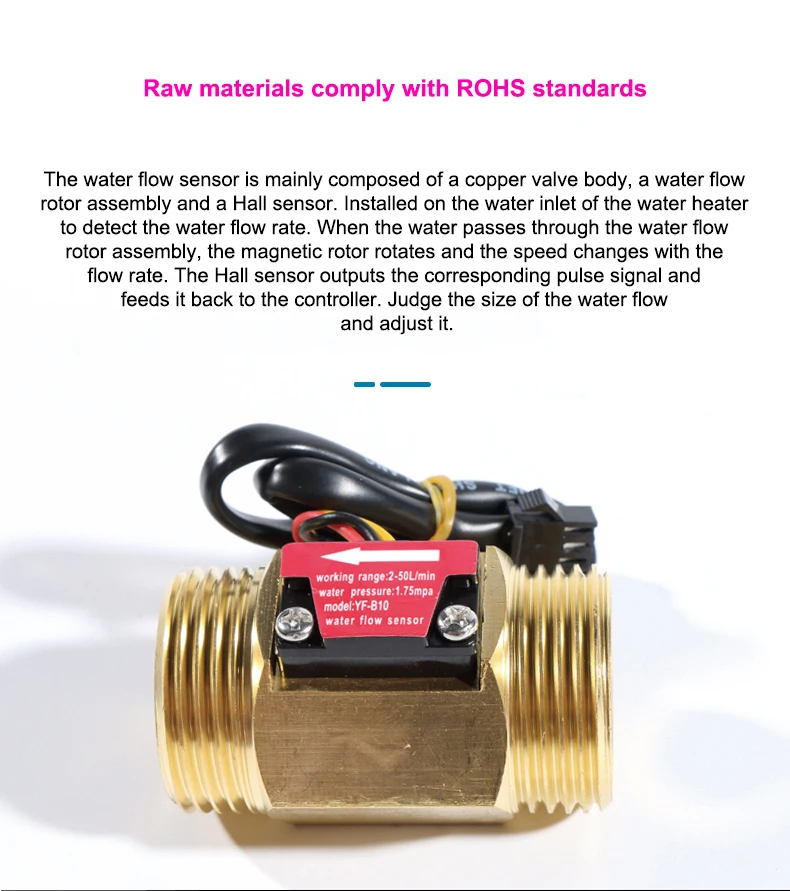

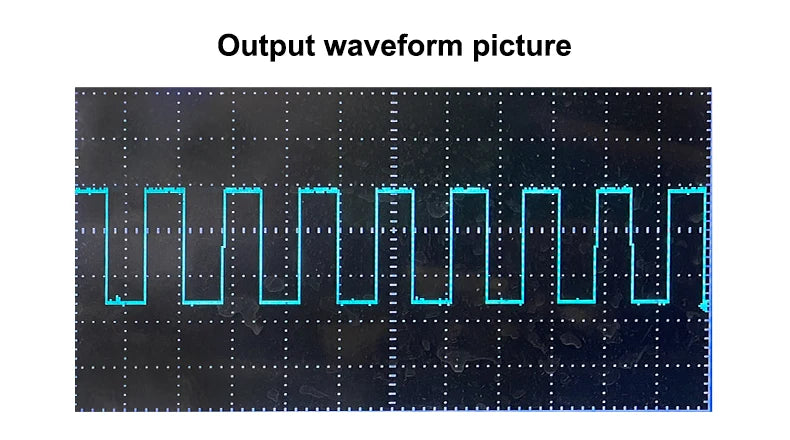

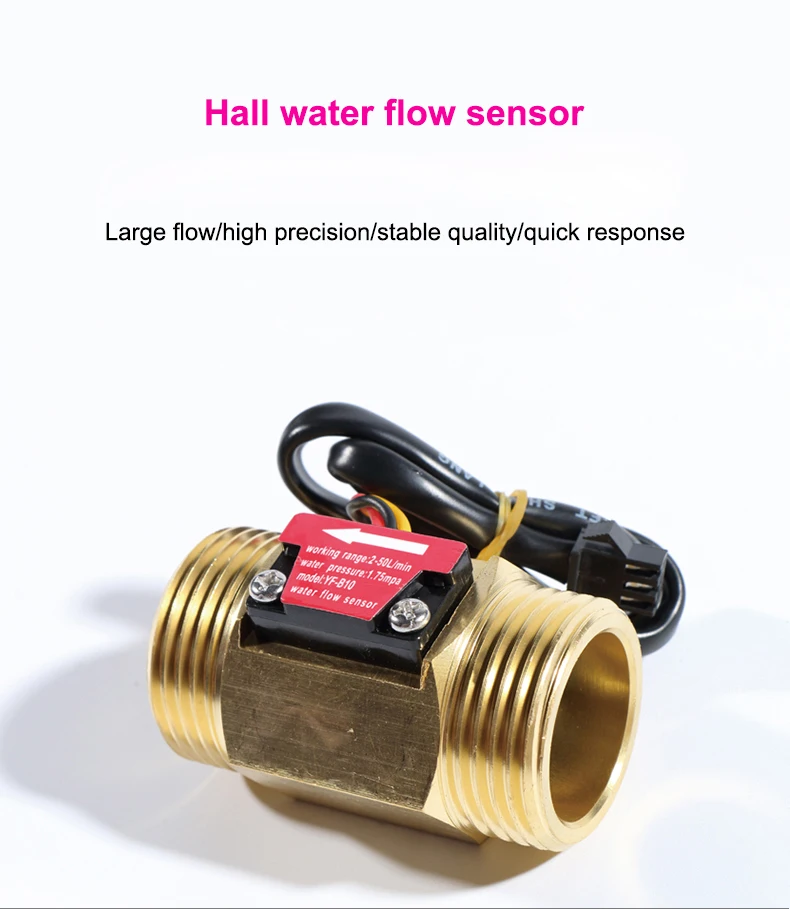

The water flow sensor is mainly composed of a brass valve body, a water flow rotor assembly, a steady flow assembly and a Hall element. It is installed at the water inlet end of the water heater to detect the flow rate of the inlet water. When the water passes through the water flow rotor assembly, the magnetic rotor rotates, and the speed changes linearly with the flow rate. The Hall sensor outputs the corresponding pulse signal and feeds it back to the controller. The controller judges the size of the water flow and regulates it.

Output signal: the default output NPN pulse signal (if you need to connect to the PLC, please contact customer service before placing an order).

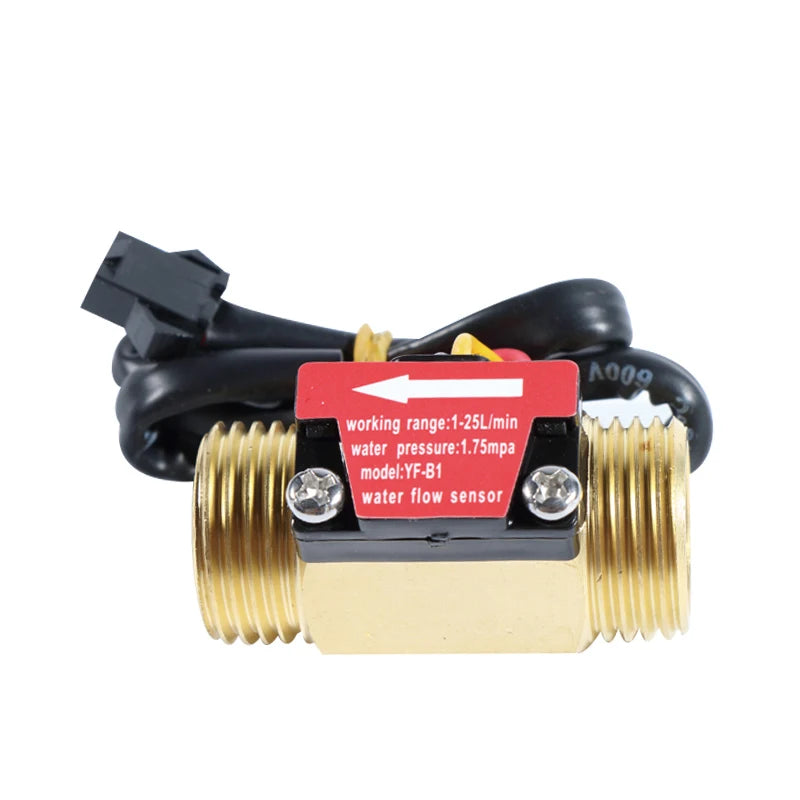

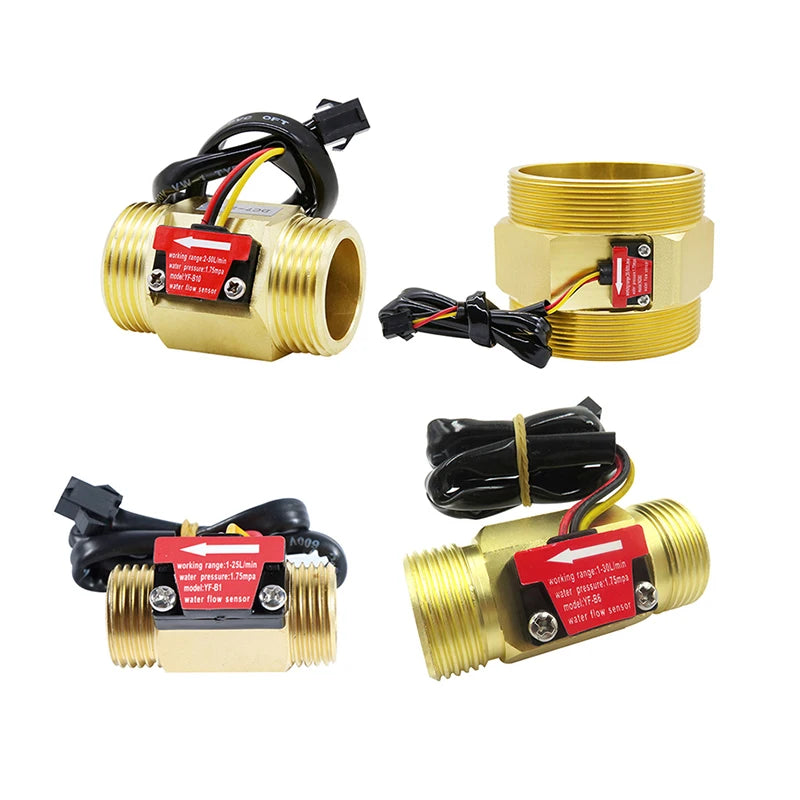

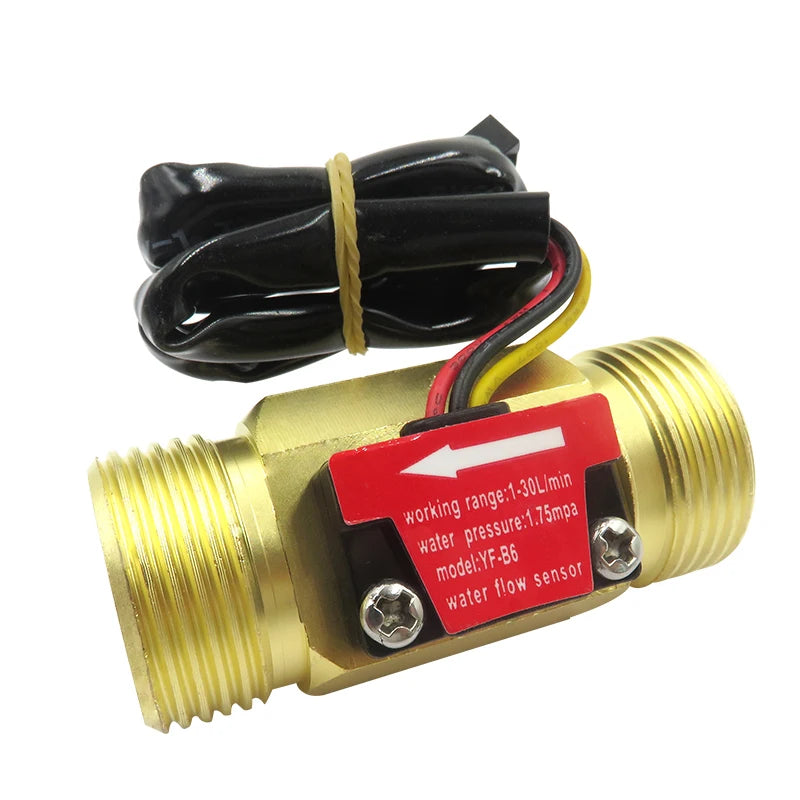

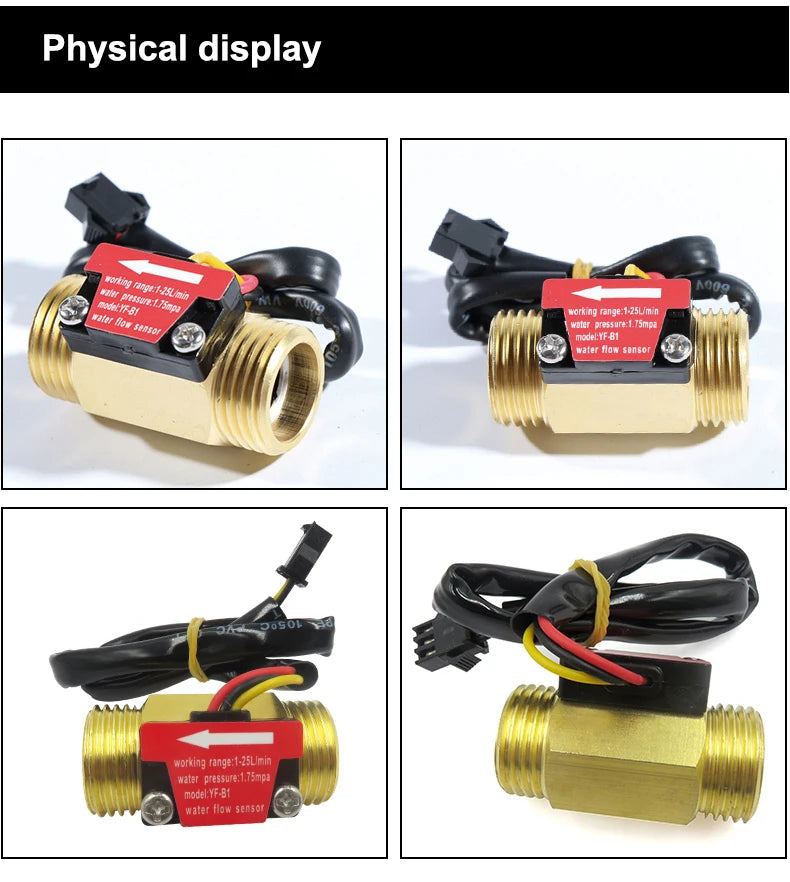

Model: YF-B1/B5/B10/DN80

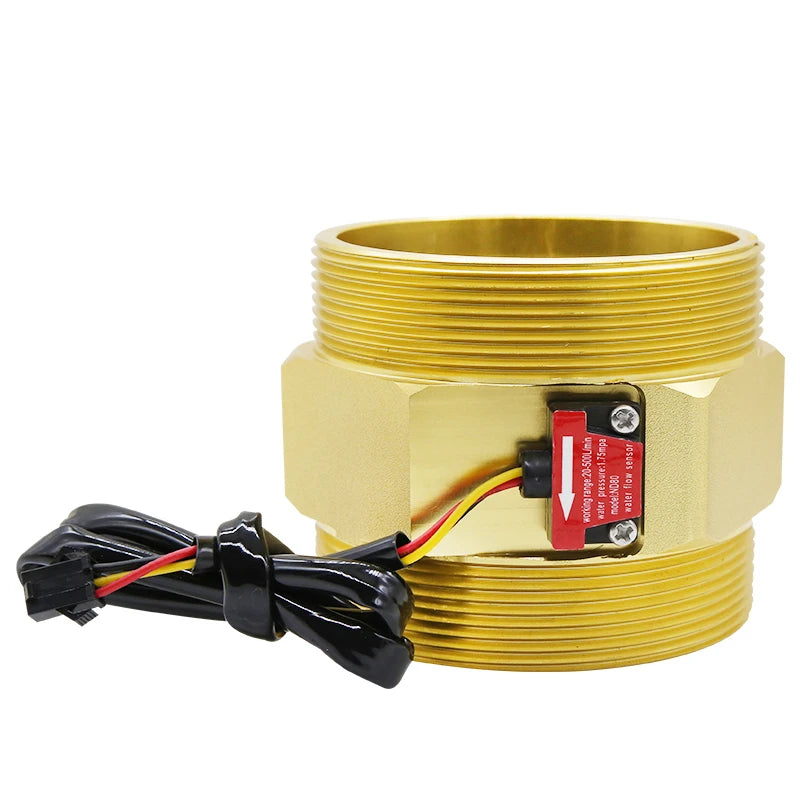

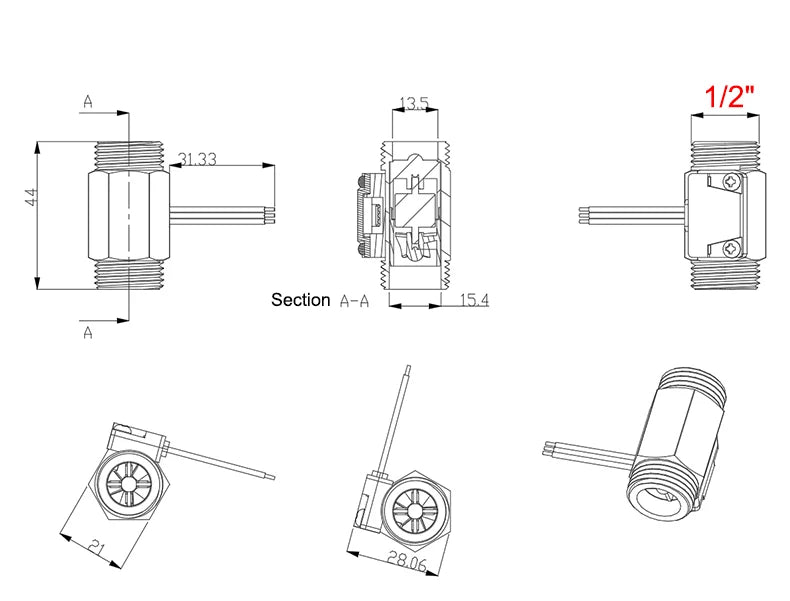

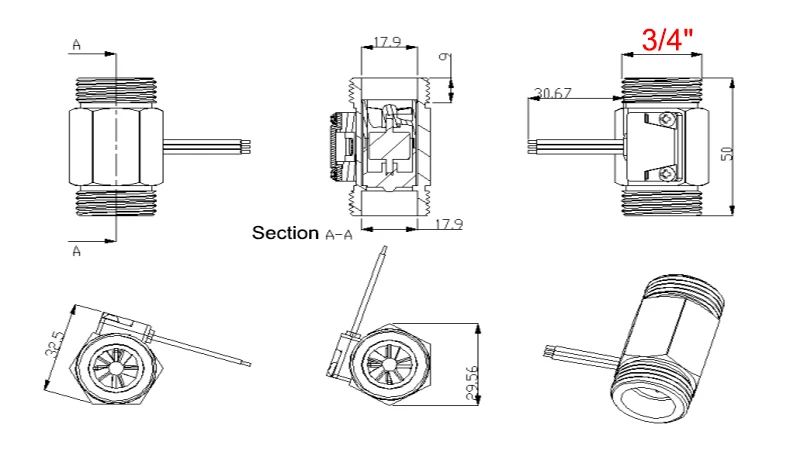

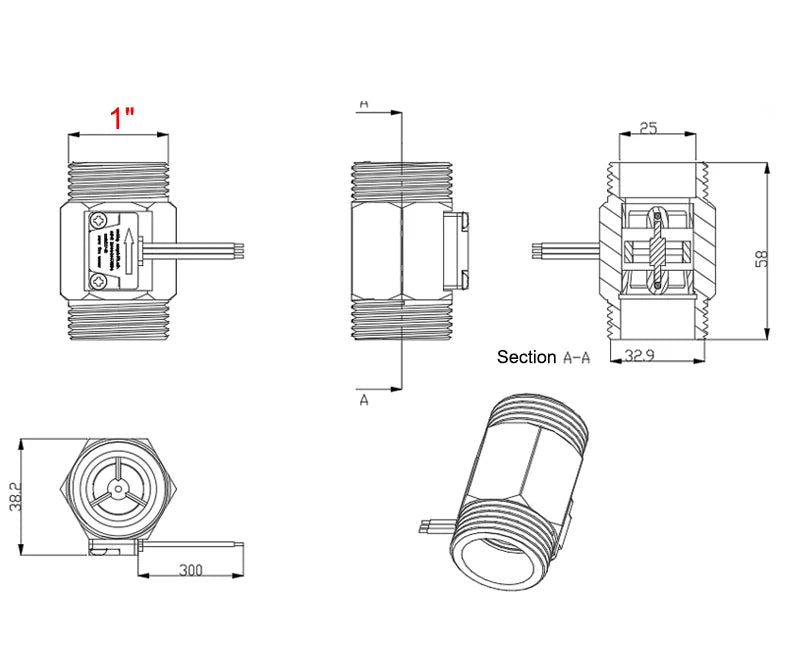

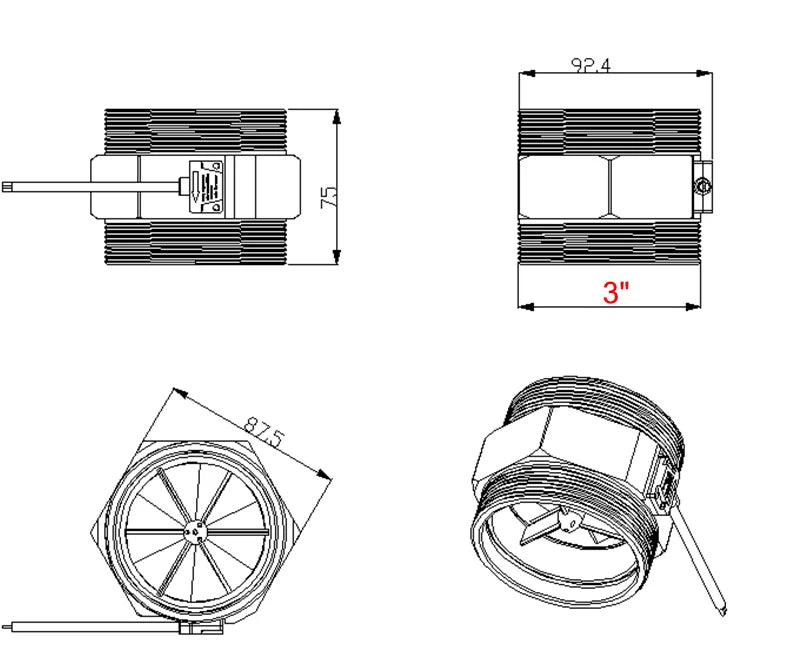

Interface size: DN15(1/2"); DN20(3/4"); DN25(1"); DN80(3")

Working voltage range: DC 5～18V

Material: Brass

Medium temperature: -20°C~+100°C

Water pressure resistance: ≤1.75MPa

Output pulse high level: >DC 4.5V (input voltage DC 5V).

Output pulse low level: 100MΩ

Flow range: 1/2"(1~25 L/min within 3% within), 3/4"(1~40 L/min within 3% within), 1"(2~50 L/min within 3% within), 3"(10~500 L/min within 3% within)

Tightness: Close each hole, add 1.7Mpa water pressure test for 1 minute without leakage and deformation.

Flow pulse characteristics: 1/2" F=(11*Q)±5%; 3/4" F=(6.6*Q)±5%; 1" F=(8*Q-4)±5%; 3" F=(0.5Q)±5%; Q = L/Min

Notice:

1. The more you order, the more offers, please contact us.

2. Package list: Water flow sensor*1pc

3. Wiring mode:
Red IN is connected to the positive pole
Yellow UOT signal output line
Black GND connects to the negative pole
