Description
Product Overview:

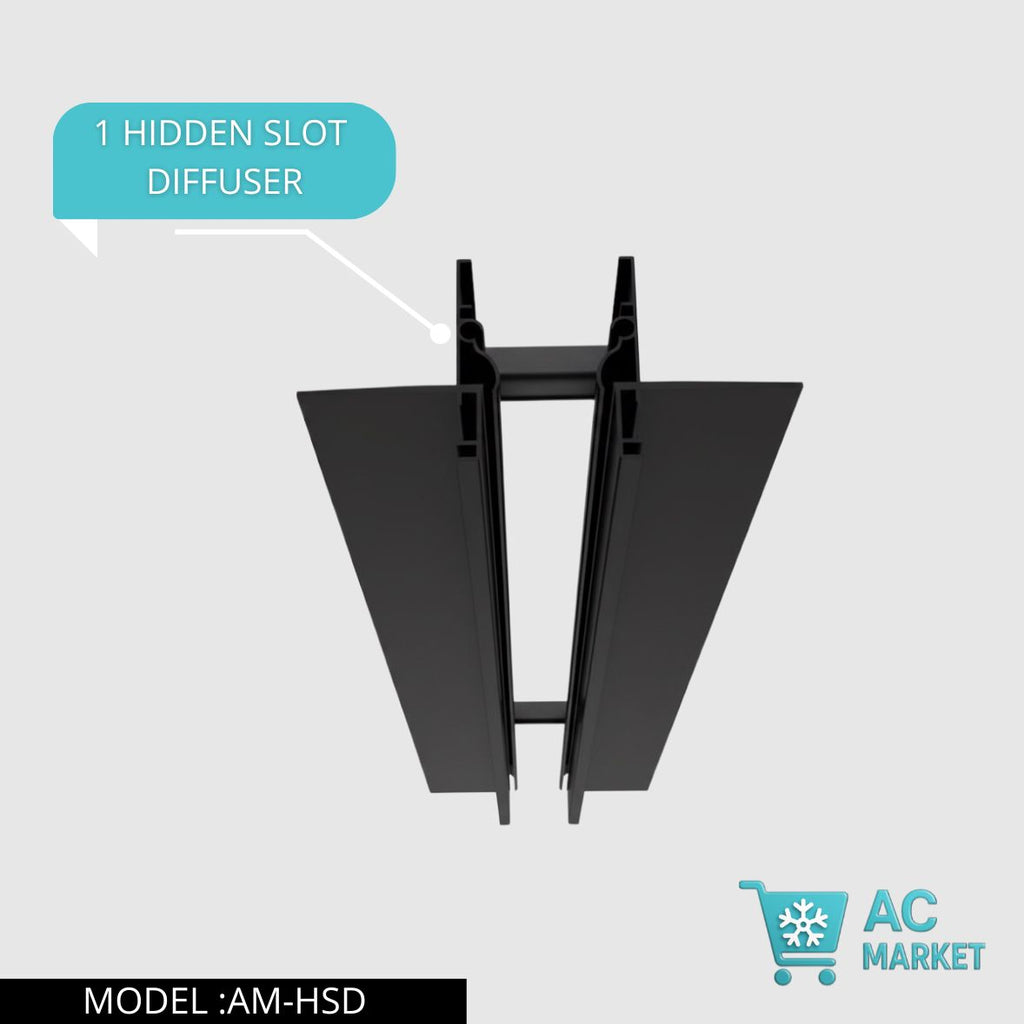

Linear Slot Diffuser – Single Slot (1 Slot)
A high-quality, sleek diffuser made of pure aluminum, designed for hidden air conditioning systems.
It features a modern, slender design that ensures balanced air distribution.
with an elegant decorative look combining white and black colors.
Suitable for villas, hotels, shopping centers, offices, and luxury projects..
Key Features:
· Modern linear design suitable for all types of interior decorations.
· High quality, made of pure aluminum with powder coating.
· Homogeneous and quiet air distribution without noise.
· Adjustable airflow direction with multiple angles via the Deflection Blade.
· Suitable for installation in gypsum ceilings.
· Available in white and black.
· Lightweight.
· Easy to install, remove, clean, and maintain.
· Washable.
Technical Details:
|
Item |
Details |
|
Name |
1 Slot Grille Diffuser |
|
Type |
1 Slot Diffuser 1 GRILL DIFFUSER |
|
Shape |
Rectangular as shown in the image |
|
Number of slots |
1 slot |
|
Brand |
LP |
|
Material |
100% Aluminum |
|
Structure |
All parts of the grille are made of aluminum |
|
Aluminum Thickness |
5 mm for the frame and other parts according to international standards |
|
Front measurement |
50 mm |
|
Back measurement |
35 mm |
|
Opening size |
25 mm |
|
Length |
All sizes available upon request |
|
Color |
White color RAL 9016 Black color RAL 9005 and color can be ordered |
|
Paint type |
High quality powder coating POWDER COATING |
|
Internal blade |
Internal blade available |
|
Air direction control |
Yes, possibility of blade redirection |
|
Available Types |
SUPPLY & RETURN |
|
Airflow Rate |
70 to 150 CFM |
|
Noise Level |
Low Noise ≤ 25 dB |
|
Operating Pressure |
0 – 30 Pa |
|
Inner Blade |
Black Blade available in return and supply |
|
Country of Manufacture |
United Arab Emirates |
Product Dimensions:
|
Side |
Details |
Measurement MM |
|
|
F |
Face Size |
FACE SIZE |
70 |
|
N |
Neck Size |
NECK SIZE |
40 |
|
D |
Depth |
DEPTH |
40 |
|
O |
Opening measurement |
OPENING |
25 |
|
L |
Length |
LENGTH |
All sizes available (made to order) |
Uses:
· Residential villas
· Hospitality buildings and hotels
· Malls and retail stores
· Theaters and halls
· Offices and administrative headquarters
· HIGH-END INTERIOR DESIGN projects
Other options:
· A PLENUM BOX can be requested
· A VOLUME CONTROL DAMPER can be requested
· Various sizes can be requested
· Special prices are available for large projects
· Special prices are available for trading companies and retail stores
