SPECIFICATIONS
Actuator Mode : With Manual And Instruction
Brand Name : NoEnName_Null
Is Smart Device : No
Material : Brass
Media : Water
NC or NO : Normally Closed
Origin : Mainland China
Power Source : AC
Pressure : Low Pressure
Standard or Nonstandard : Standard
Structure : Ball
Temperature of Media : Normal Temperature

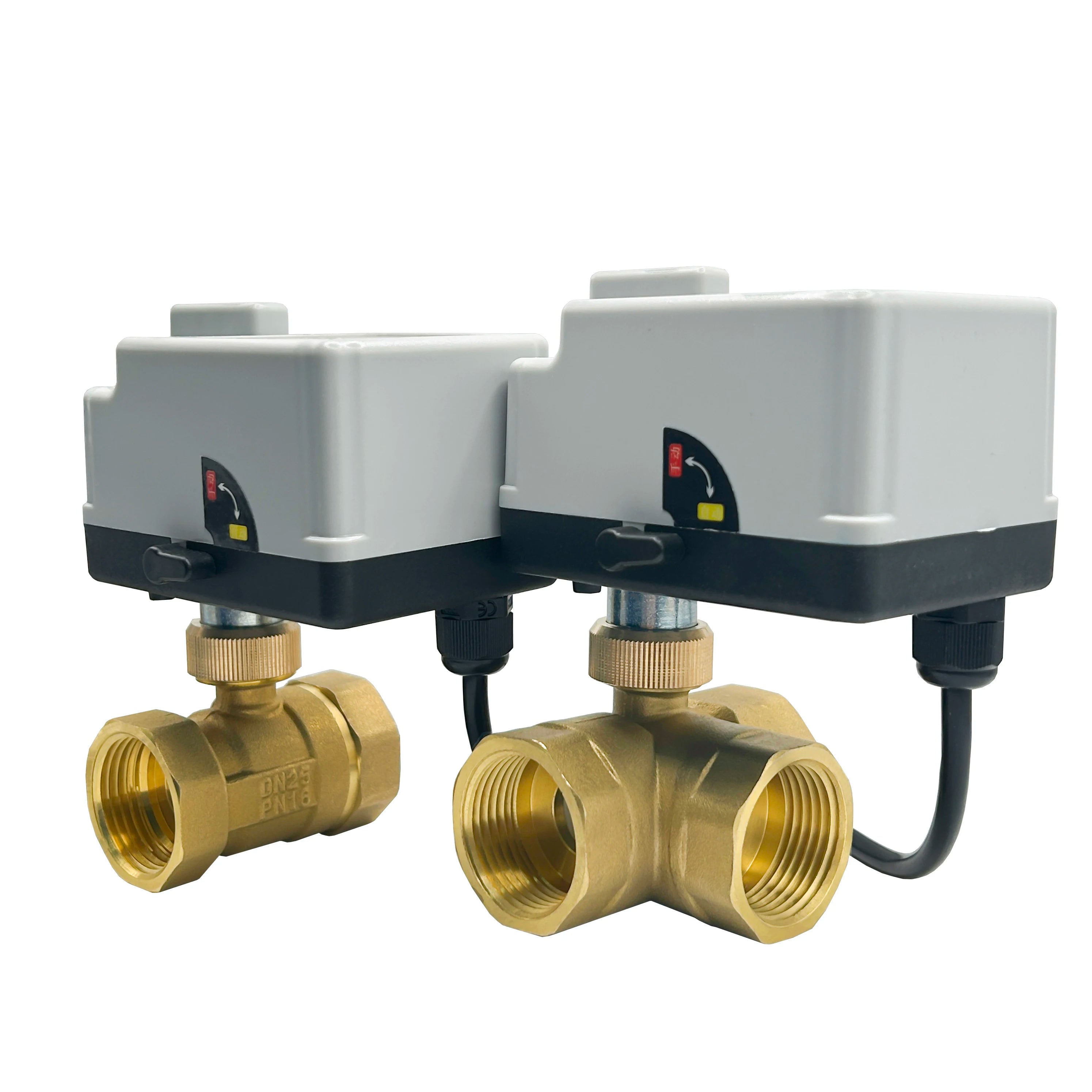

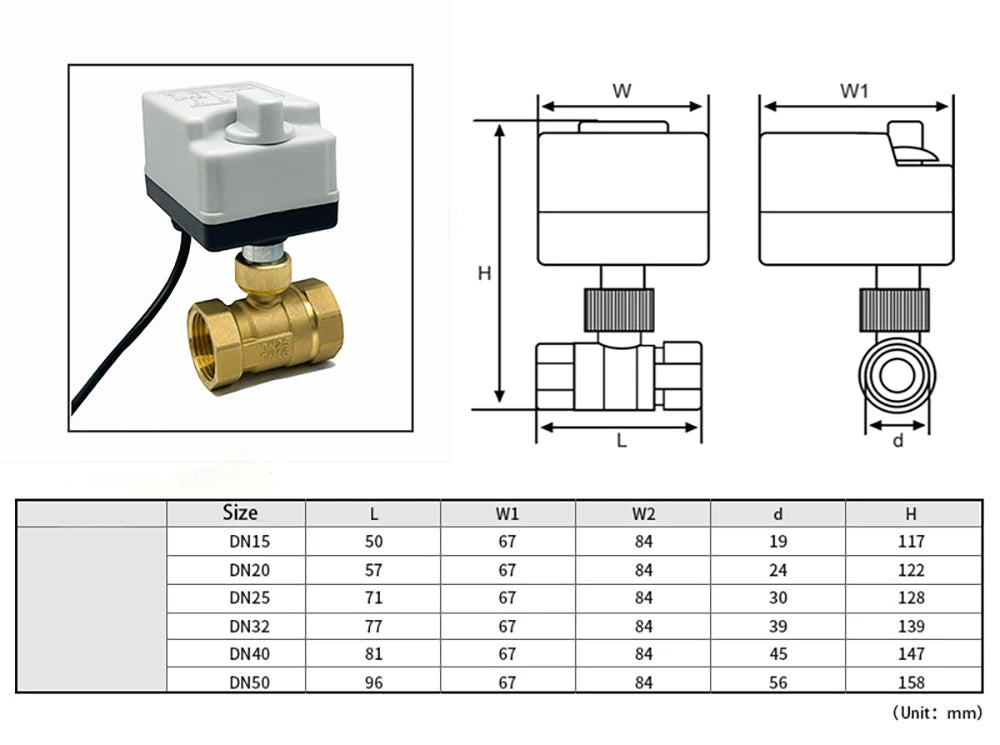

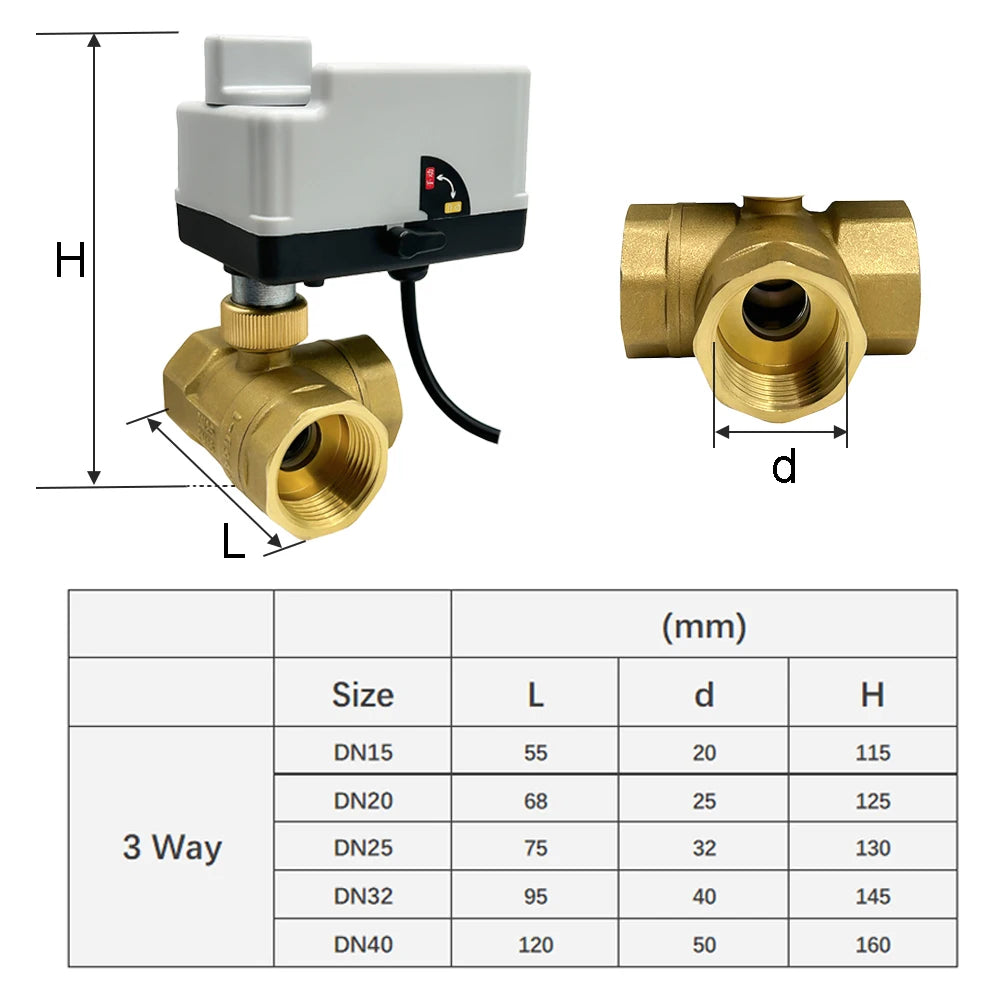

Dimension: DN15 DN20 DN25 DN32 DN40
Feature: 3-Wire 2-Control

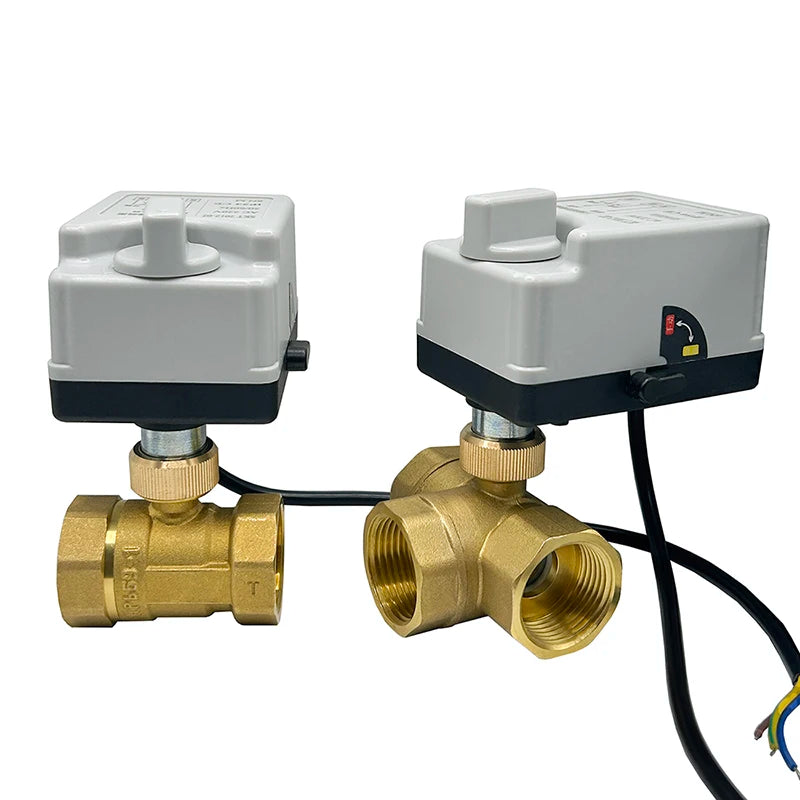

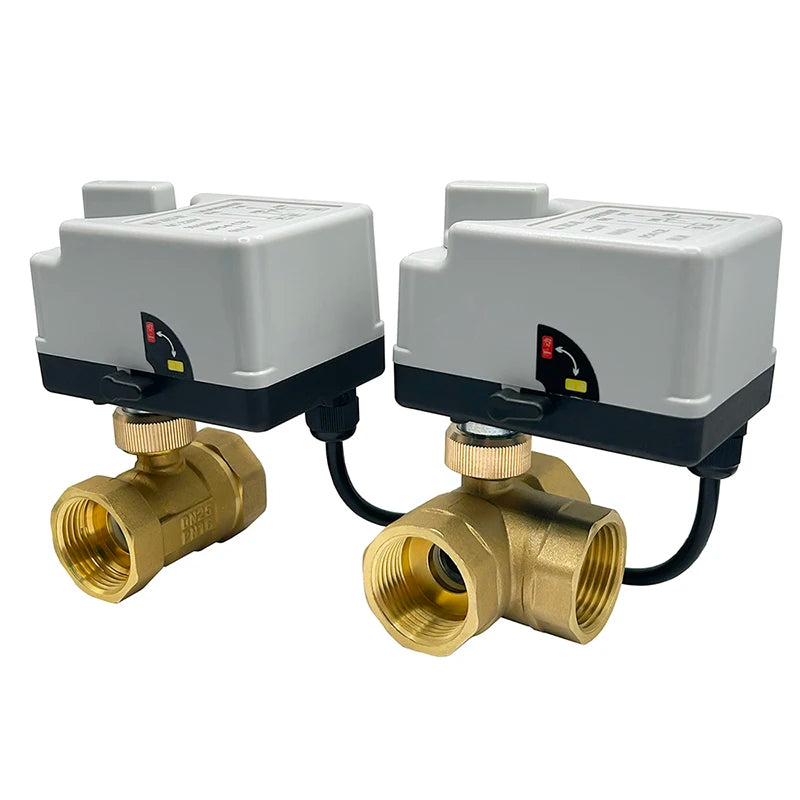

Way: 2 Way /3 Way (3 Way is T type)
Open/Close Time: 8-16 seconds
Maxmum Working Pressure: 1.6 MPa / 232psi;
Medium: Water, Air, Oil;
Voltage: AC220V/DC12V/DC24V
Power: 6W (Only when the valves open and close
Operation: Motor or hand(with manual switch function)
Life Time: 100,000 times;
Material: Brass, ABS plastic
Seal Material: EPDM & PTFE;
Environment Temperature :0°~65° in Celsius;
Medium Temperature: 0°~95° in Celsius
Protect Class: IP 54
Pay attention to a few points!
1. The valve opening and closing line cannot be charged at the same time, otherwise the motor will be damaged or the work will not be normal!
2. It is not allowed to switch multiple switches in parallel at the same time, otherwise they will be connected in series and abnormal.
3. It is not waterproof and can not be used outside or in a humid environment.
This Valve used for heating systems and air-conditioning fan coil systems on-off controlled by the valve and actuator components, actuators driven by a rotary valve ball 90 percent of movement.Synchronous motor driven actuator, Built-in limit contacts, enabling the valve in the fully open or fully closed off, the action and stability.

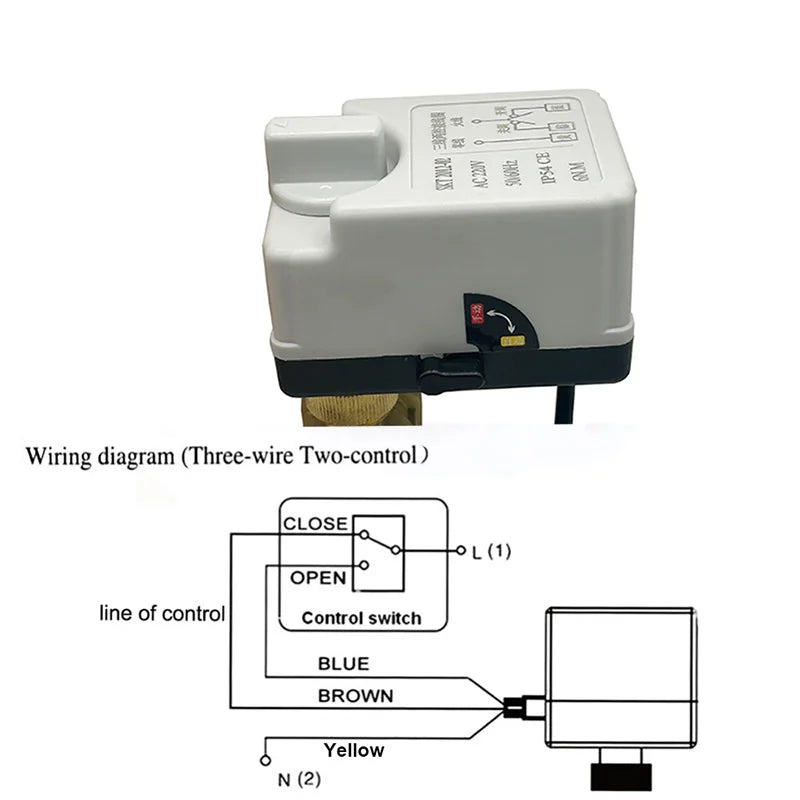

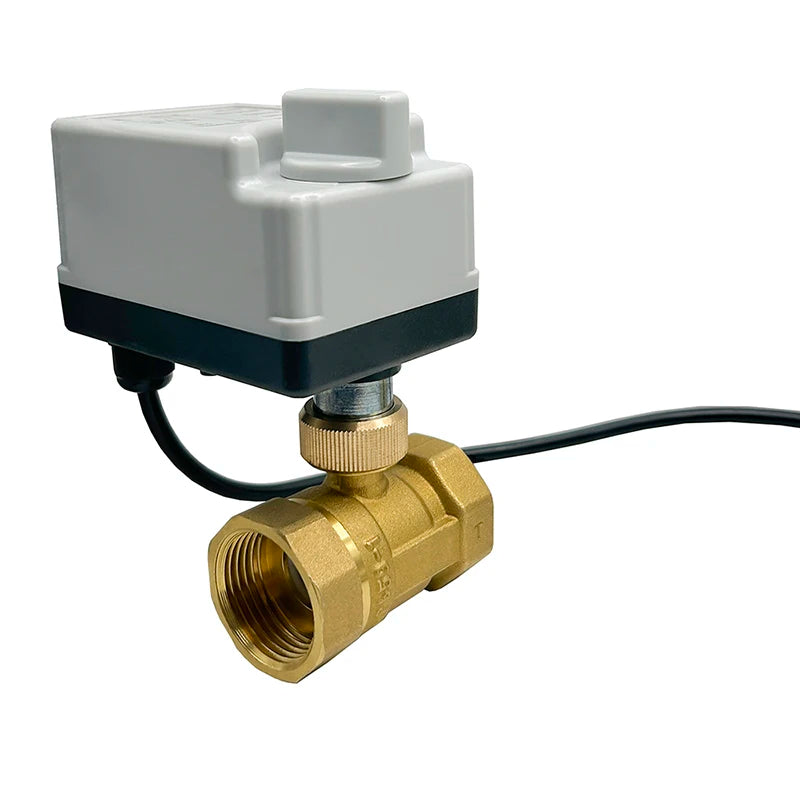

2-way line connection instructions：
Yellow connects the negative pole，Positive pole connected to the blue line valve open, positive pole connected to the brown line valve closed

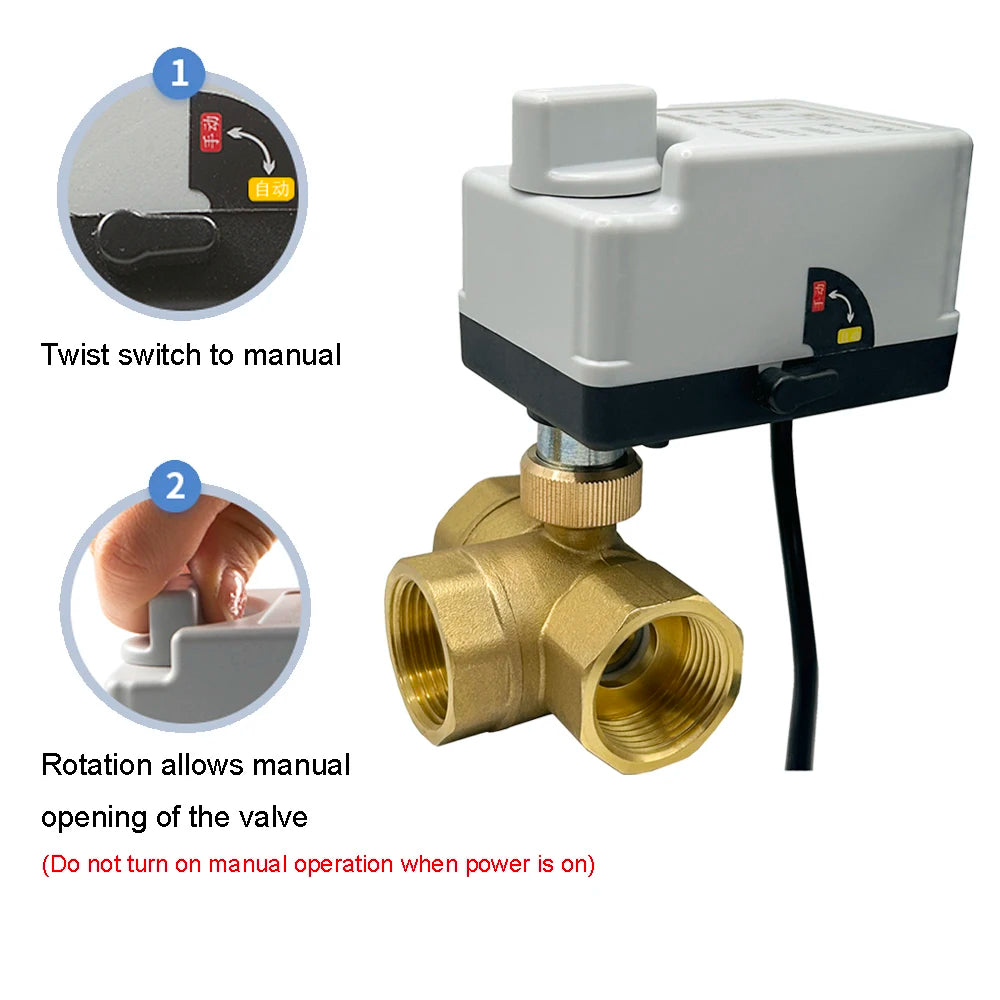

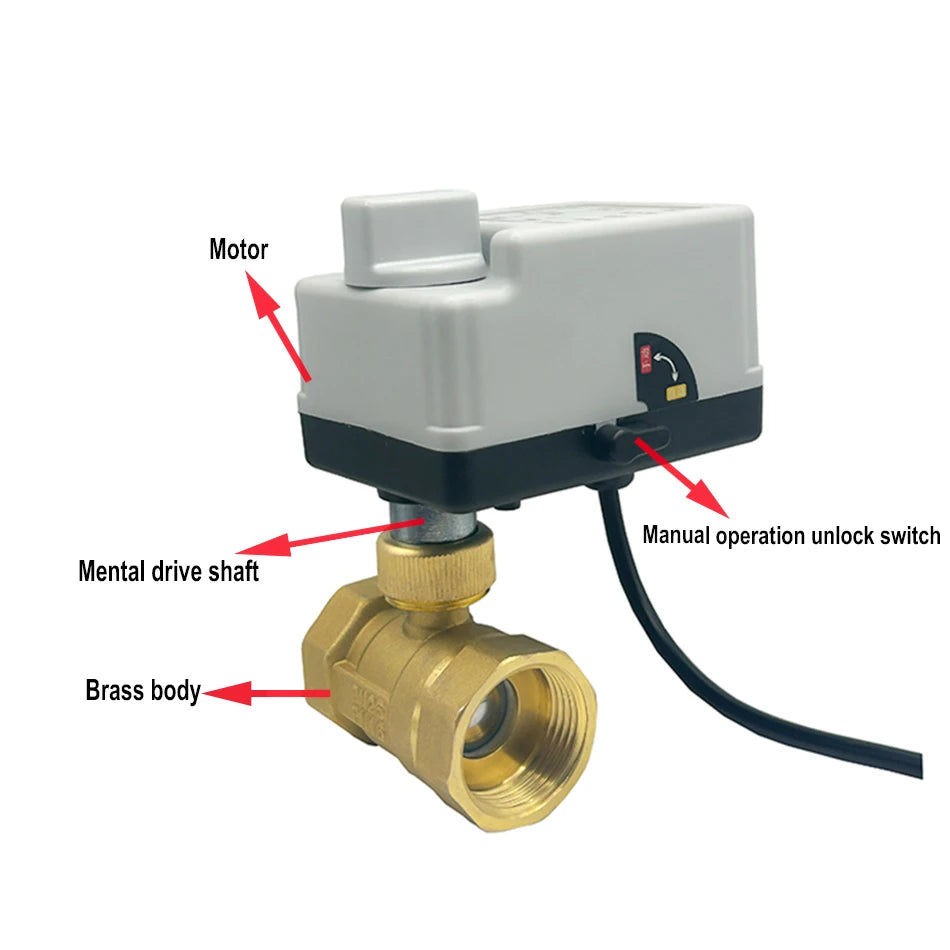

How to operate manually: First twist the motor side switch to the red area (manual button), then turn the top switch clockwise
Note: If you want to operate automatically, toggle the pointer to the yellow area (automatic button)

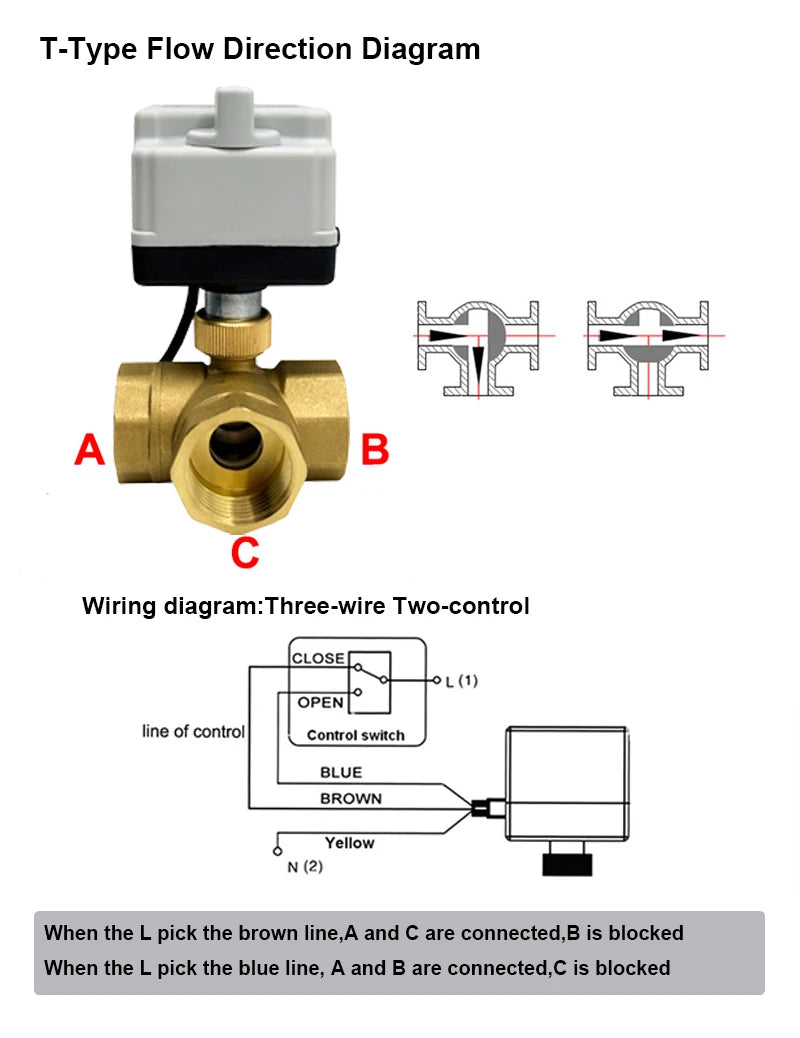

3-way line connection instructions：
The yellow wire is the common line, connect to the negative pole（-）
When the L（+） pick the Brown line，A and C are connected, B is blocked
When the L（+） pick the Blue line，A and B are connected，C is blocked

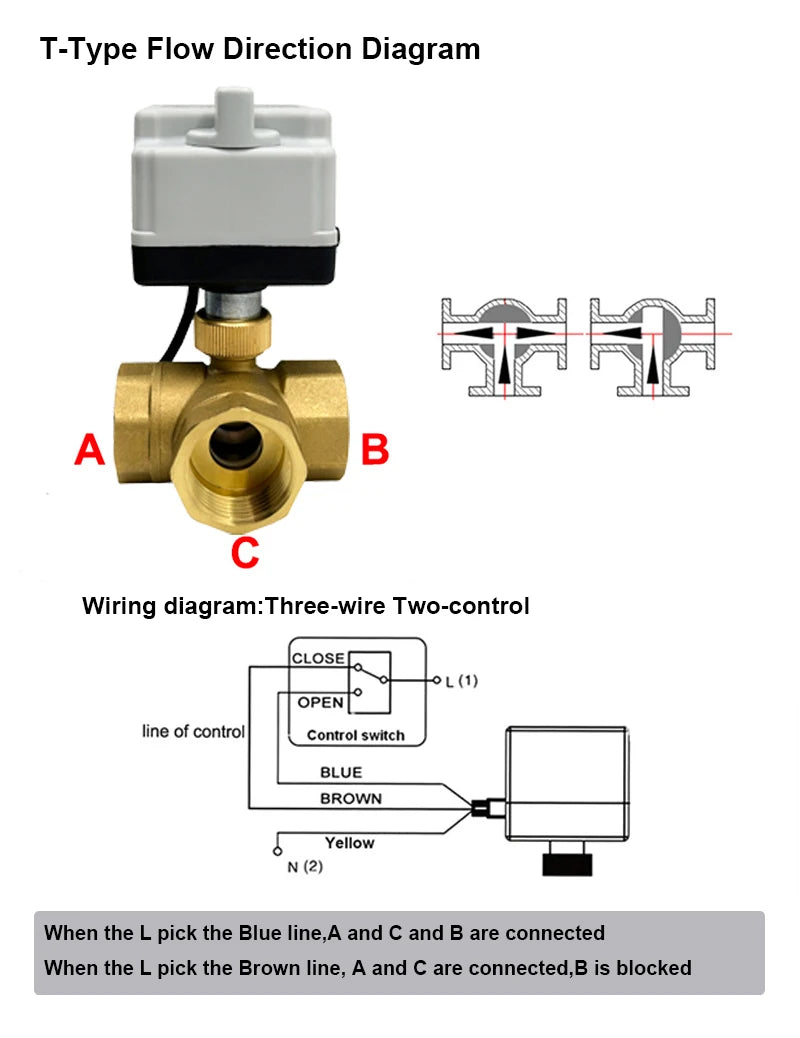

The yellow wire is the common line, connect to the negative pole（-）
When the L（+） pick the Blue line，A and B and C are connected
When the L（+） pick the Brown line，A and C are connected, B is blocked
