Description
SPECIFICATIONS
Actuator Mode : Without Manual And Instruction
Brand Name : Acarps
Certification : CE
Material : Brass
Media : Water
Model Number : 2W
NC or NO : Normally Closed
Origin : Mainland China

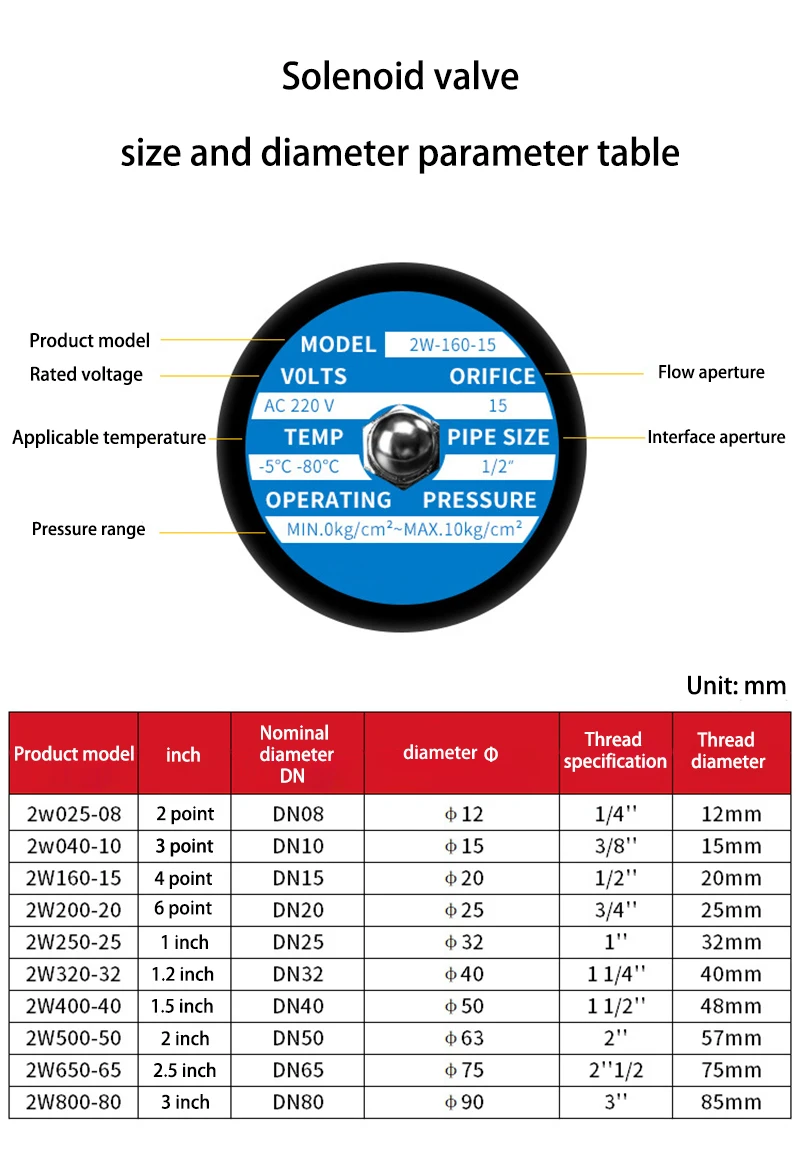

Port Size : 1/8" 1/4" 3/8" 1/2" 3/4" 1" 1-1/4" 1-1/2" 2"
Power : Solenoid
Power Source : AC
Pressure : Low Pressure
Standard or Nonstandard : Standard
Structure : Diaphragm
Temperature of Media : Normal Temperature
Specification
Brass solenoid valve is an actuator used in industrial process automation control system. It can automatically open or close the valve after receiving the electric control signal to realize the on-off or flow adjustment control of the fluid medium in the pipeline, so as to control the temperature, Parameters such as flow and pressure can be adjusted automatically or remotely controlled.
Specification

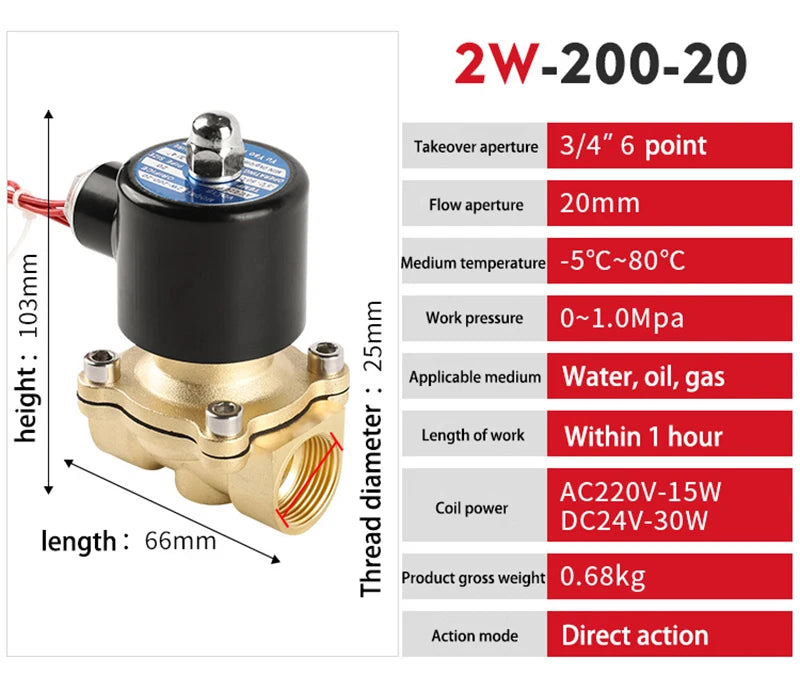

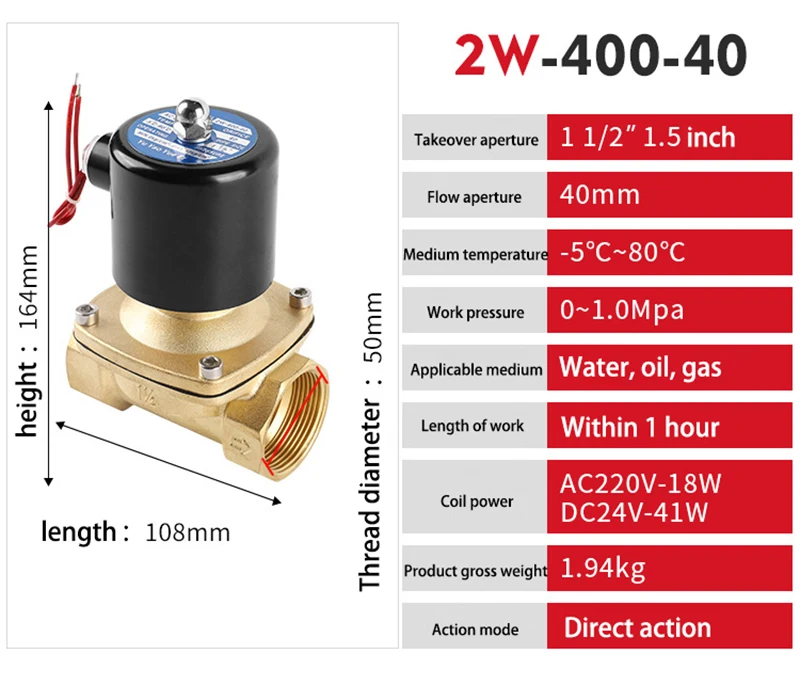

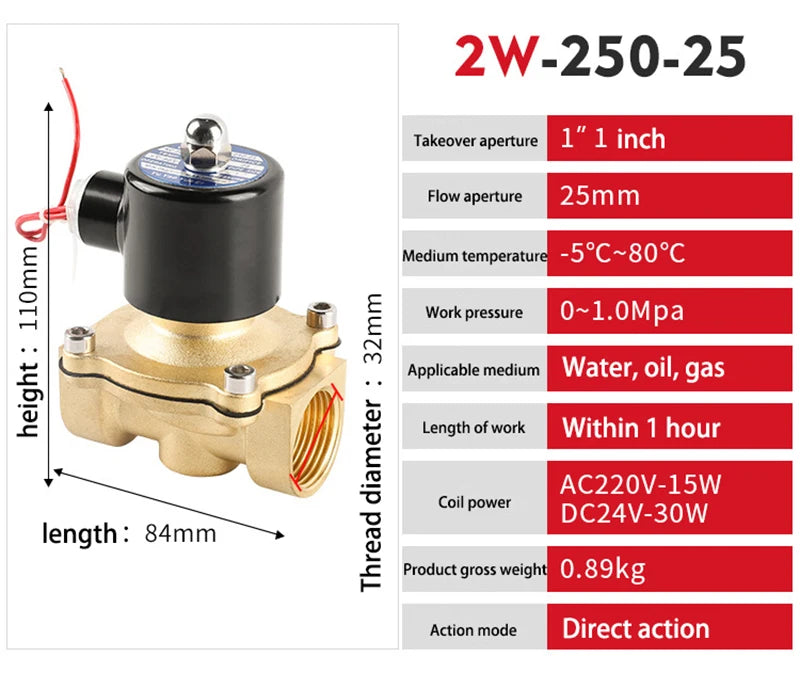

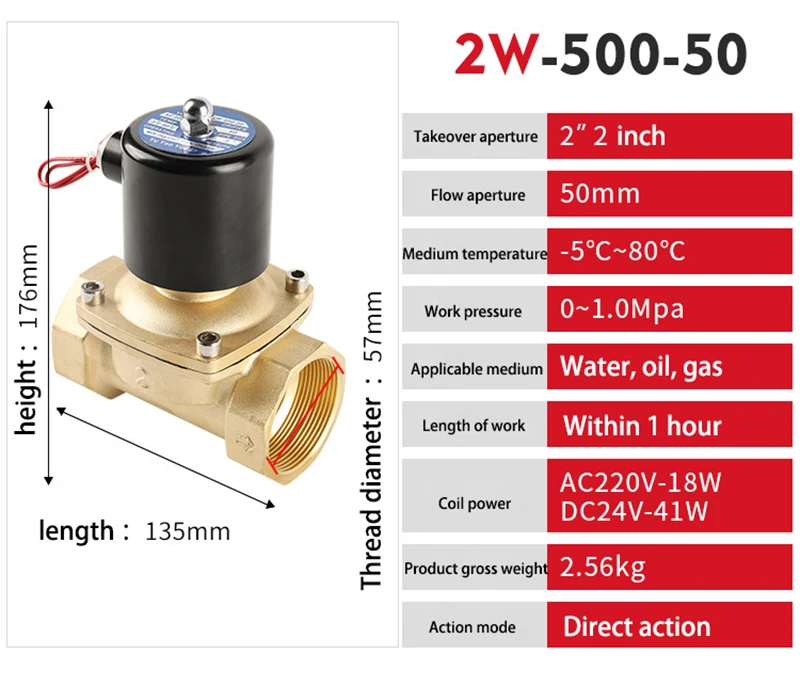

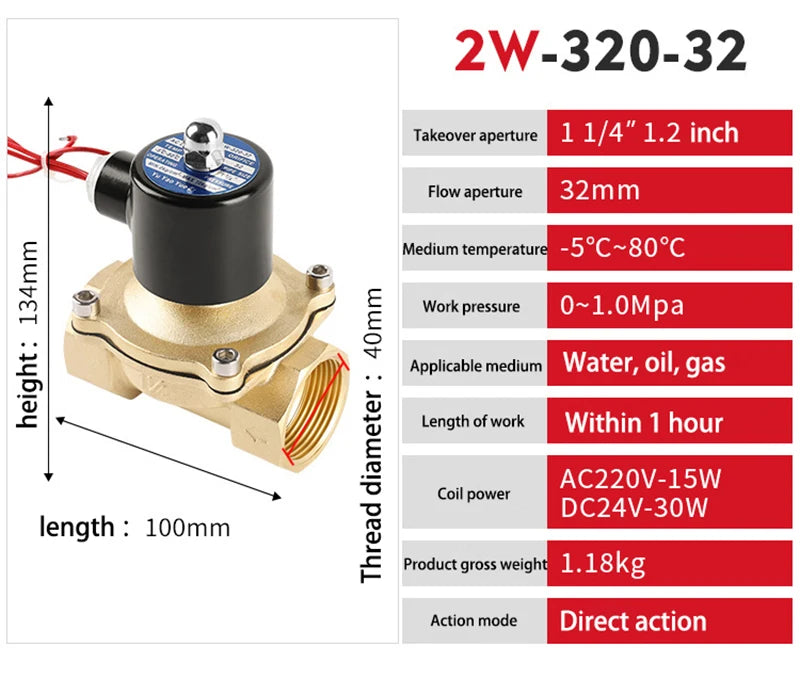

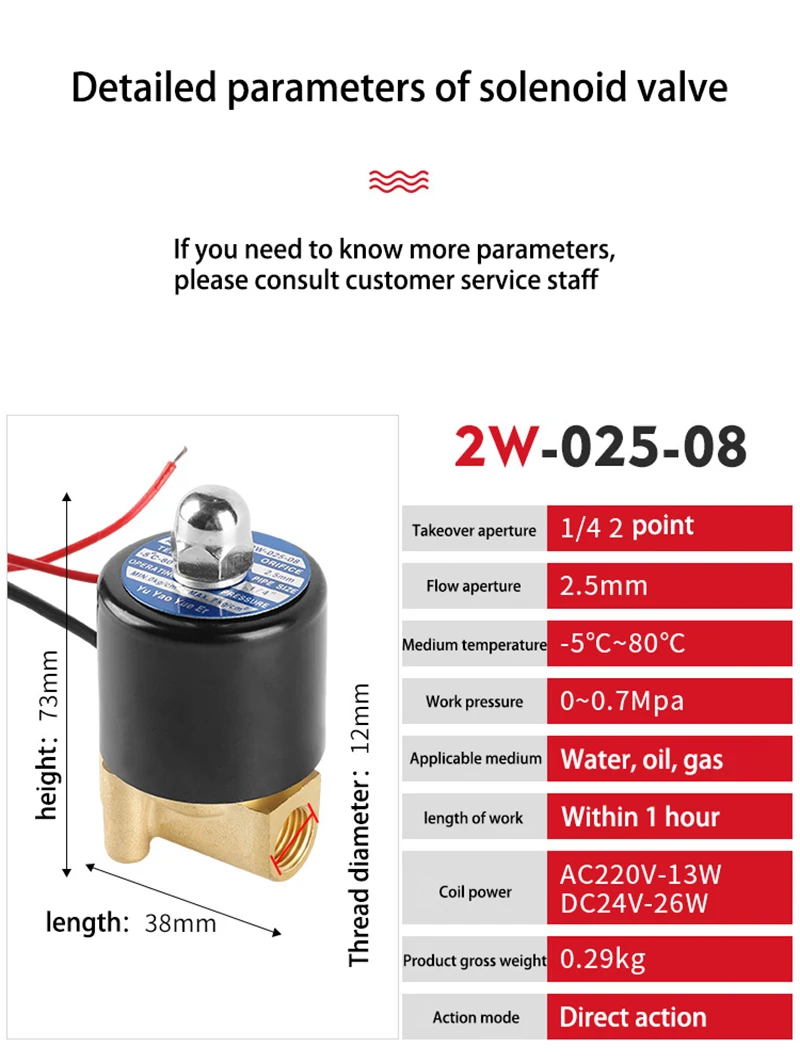

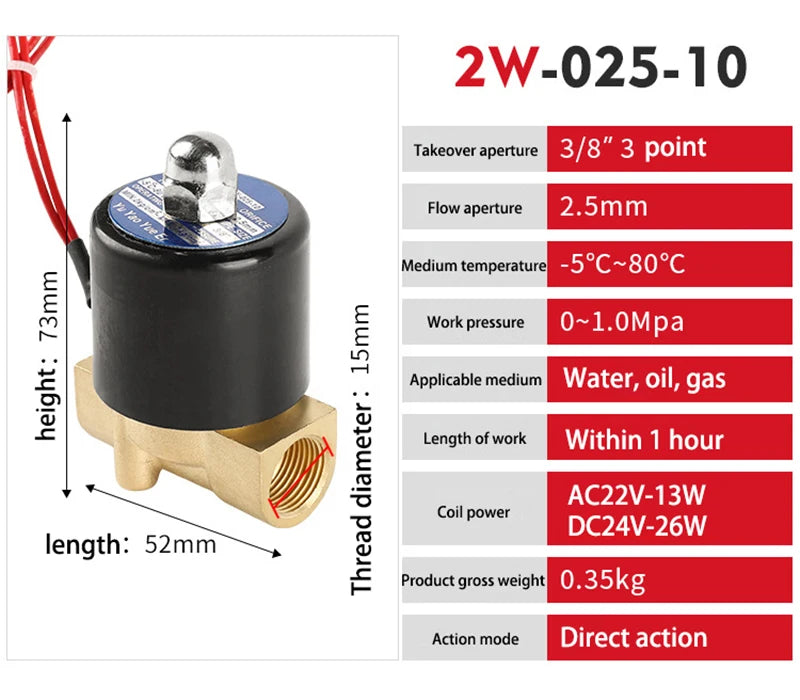

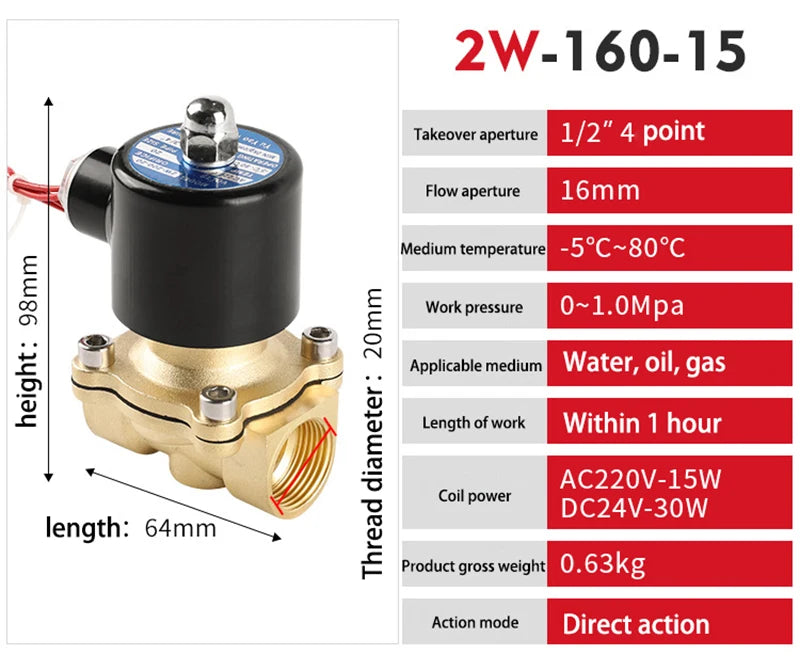

Model: 2W series

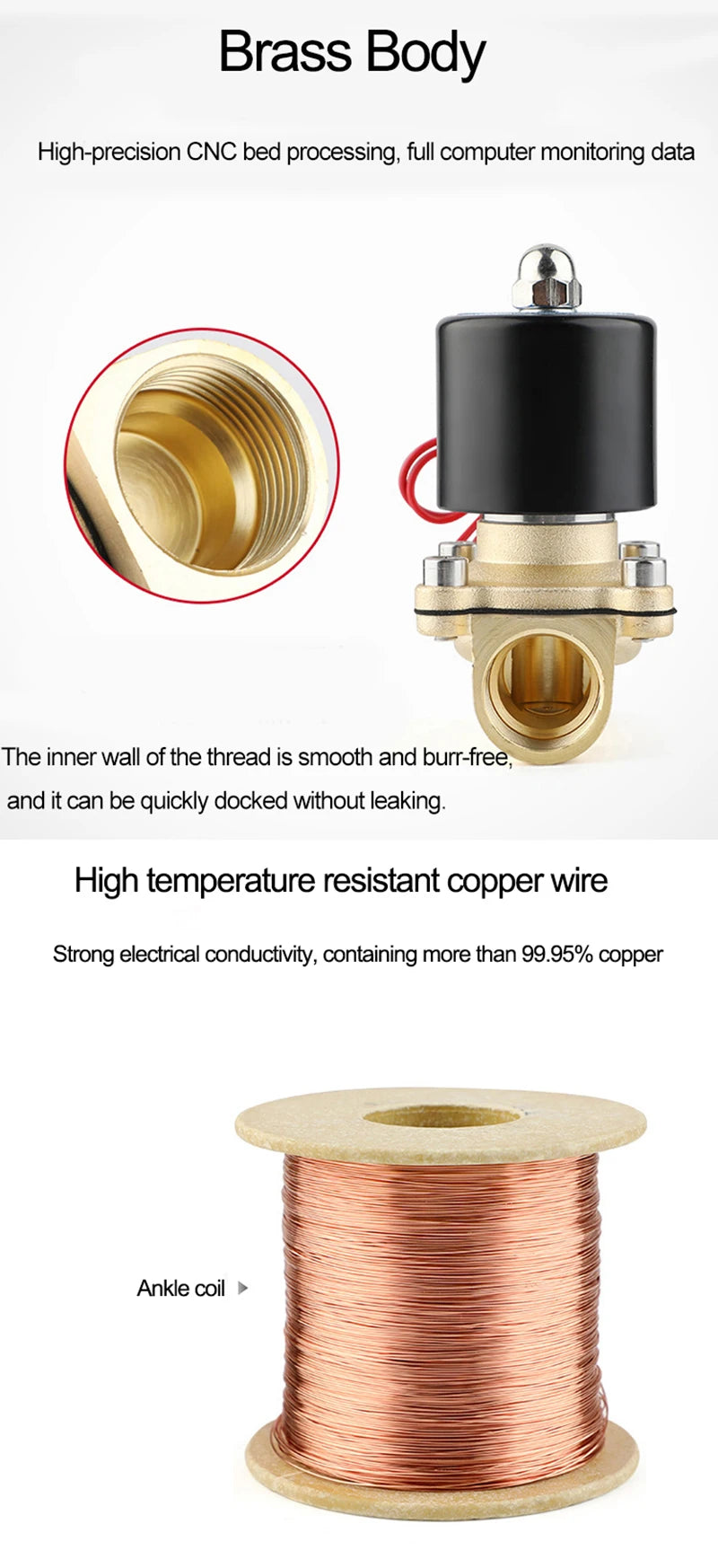

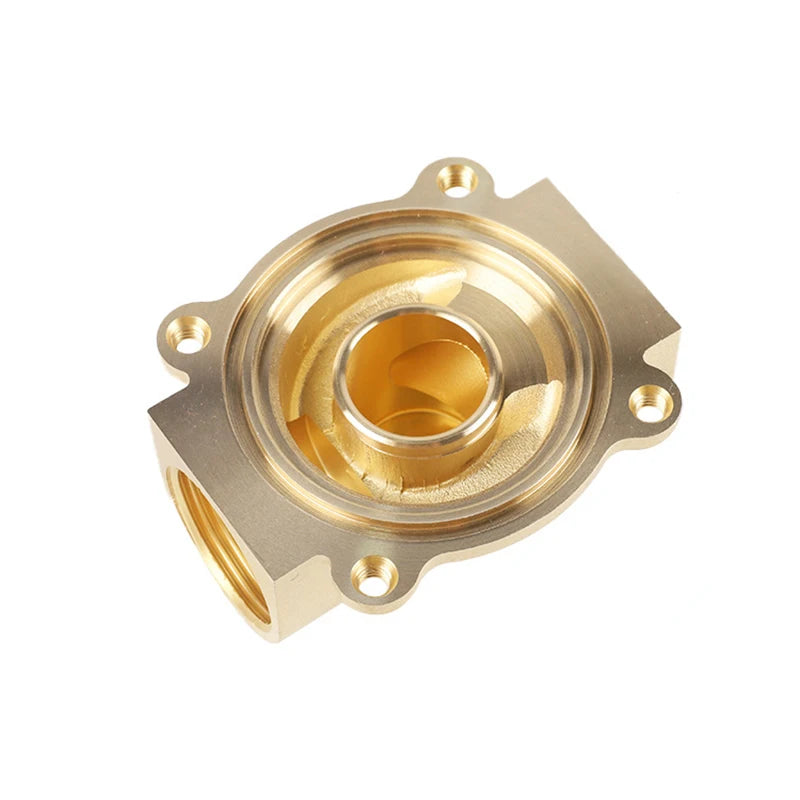

Body material: Brass
Medium: Water, gas, oil

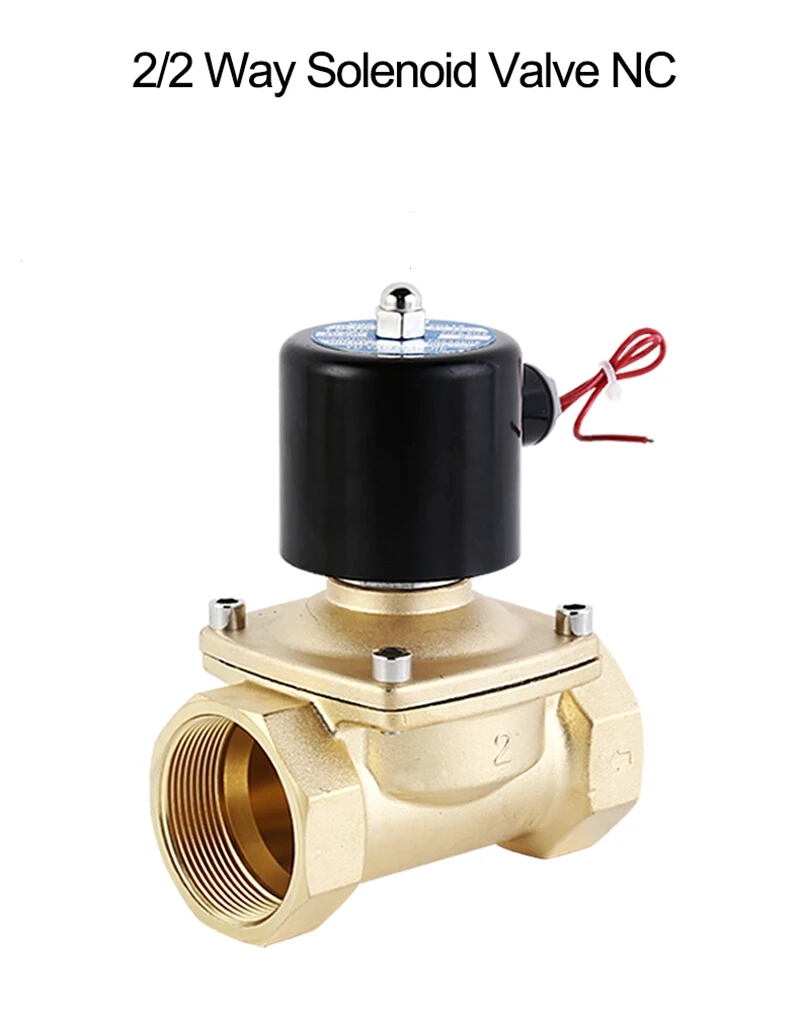

Type: Normally closed

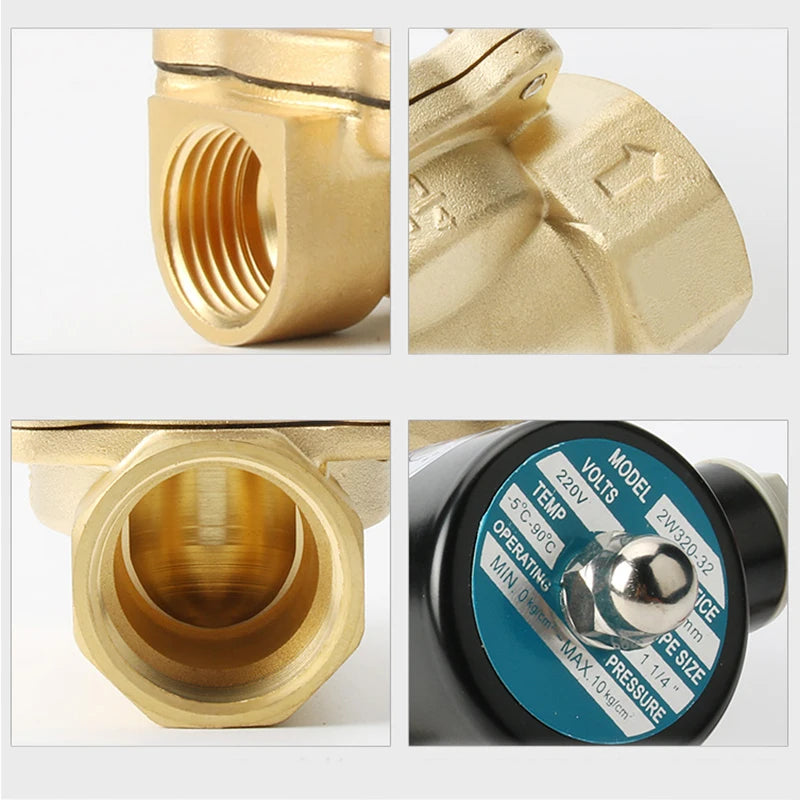

Thread: female (BSP thread, G thread, NPT thread)
Working voltage: 380VAC, 240VAC, 230VAC, 220VAC, 120VAC, 110VAC, 24VAC, 24VDC, 12VDC.
Working pressure: 0~1Mpa
Action mode: Direct action
Seal: NBR
Average temperature: -5-80℃
Application areas:
It is widely used in medical machinery, solar energy, cleaning equipment, food machinery, burners, welding and cutting, fire safety, environmental protection water treatment, machinery manufacturing and other industries.
