Product Overview:

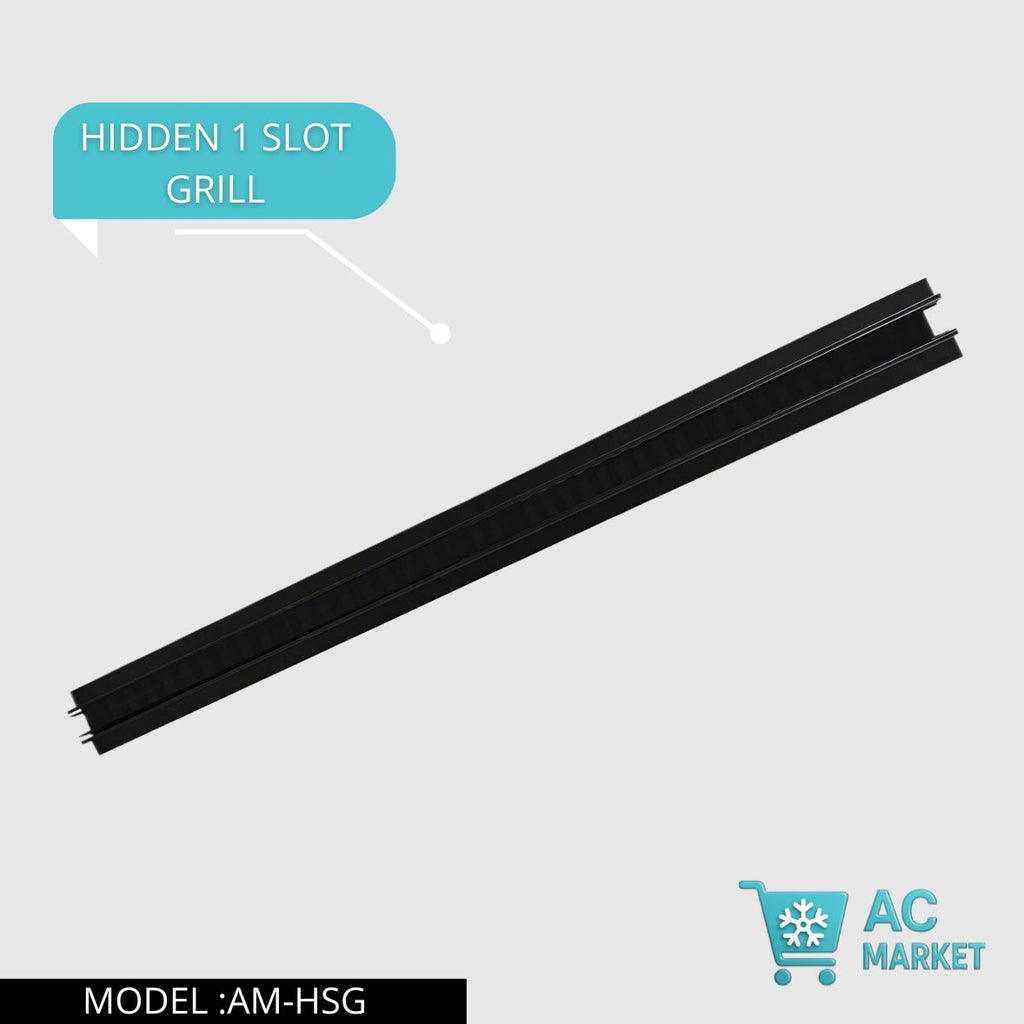

Linear Slot Diffuser – 1 Slot
High-quality, streamlined diffuser made of pure aluminum, designed for concealed air conditioning systems.
It features a modern, slim design that ensures balanced air distribution.
with an elegant decorative appearance combining white and black colors.
Suitable for villas, hotels, shopping centers, offices, and luxury projects..
Key Features:
· Modern linear design suitable for all types of interior decorations..
· High quality, made of pure aluminum with powder coating.
· Even and quiet air distribution without noise..
· Adjustable air direction at multiple angles via the Deflection Blade.
· Suitable for installation in gypsum ceilings..
· Available in white and black.
· Lightweight.
· Easy to install, disassemble, clean, and maintain..
· Washable and cleanable.
Technical Details:
|
Item |
Details |
|
Name |
1 Slot Grille Diffuser |
|
Type |
1 Slot Diffuser 1 GRILL DIFFUSER |
|
Shape |
Rectangular as shown in the image |
|
Number of Slots |
1 Slot |
|
Brand |
LP |
|
Material |
100% Aluminum |
|
Structure |
All grille parts are made of aluminum |
|
Aluminum Thickness |
5 mm for the frame and the rest of the parts according to international standards |
|
Front Size |
50 mm |
|
Back Size |
35 mm |
|
Slot Size |
25 mm |
|
Length |
All sizes available on request |
|
Color |
White color RAL 9016 Black color RAL 9005 Other colors can be ordered |
|
Coating Type |
High-quality powder coating POWDER COATING |
|
Inner Blade |
Inner blade available |
|
Air Direction Control |
Yes, louvered directionality |
|
Available Types |
SUPPLY & RETURN |
|
Airflow Rate |
70 to 150 CFM |
|
Noise Level |
Low Noise ≤ 25 dB |
|
Operating Pressure |
0 – 30 Pa |
|
Inner Blade |
Black Blade available in return and supply |
|
Country of Origin |
United Arab Emirates |
Product Dimensions:
|
Side |
Details |
Measurement MM |
|
|
F |
Face Size |
FACE SIZE |
70 |
|
N |
Neck Size |
NICK SIZE |
40 |
|
D |
العمق |
DEPTH |
40 |
|
O |
قياس الفتحة |
OPENING |
25 |
|
L |
الطول |
LENGTH |
متوفر جميع المقاسات (يصنع حسب الطلب ) |
الاستخدامات :
· Residential villas
· Hospitality buildings and hotels
· Malls and retail stores
· Theaters and halls
· Offices and administrative headquarters
· HIGH-END INTERIOR DESIGN projects
Other options:
· A PLENUM BOX can be ordered
· A VOLUME CONTROL DAMPER can be ordered
· Various and multiple sizes can be ordered
· Special prices are available for large projects
· Special prices are available for commercial companies and shops
